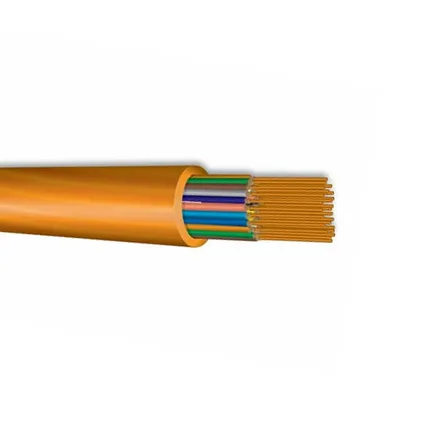

12 Fiber Multimode Orange Jacket 900um Tight Buffered Indoor Cable

Description:

• 2 Strand OCC DX Series 900 µm Tight Buffered, Indoor/Outdoor Distribution, OFNR Riser, Multimode 62.5/125

Applications:

• Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building campus locations without costly transitions between cable types

• Ideal configuration for a single termination point reguiring multiple fibers

Features:

• High performance components and construction
• High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls

• Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers

• Lower installed cost

• High performance tight-buffered coating on each fiber for environmental and mechanical protection

• High crush resistance may eliminate the need for innerduct

• 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.

• UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces


Indoor ("S" Jacket)

• Indoor-only flexible flame retardant plenum jacketed cables available

• 2 to 12 fibers

• Can have interlocking armor applied to cables as an alternative to conduit installation

Standards:

• ICEA -S-83-596
• ICEA-S-104-696
• GR-409-CORE
• TIA-568
• TIA-598

Specifications:

• Fiber Count: 12
• Diameter: 0.24 inch
• Weight kg/km (lbs/1,000): 40 / (27)
• Installation N (lbs): 1800 / (400)
• Operational N (lbs): 600 / (135)
• Installation cm (in): 9.3 / (3.7)
• Long Term cm (in): 6.2 / (2.4)
• Part number: DX012SWLS9OP
